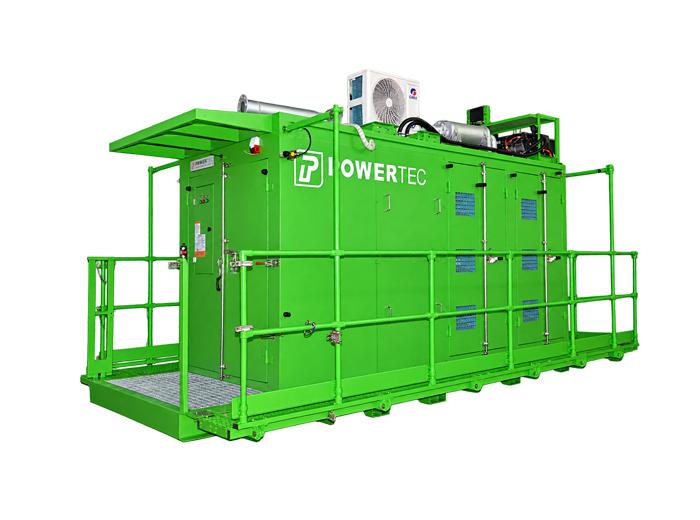

Hybird System RTG Genset
Hybird System RTG Genset

Product Features:

(1)Integrated design for quickand easy on-site installation.

(2)Durable and stable for seaport environment application;

(3)Latest mutual battery technologywith reliable performance andsignificant cost reduce

(4)High efficiency on board dieselgenerator meets latest emissionstandard with lower Emission;

(5)Intelligent central control system: Optimize thecooperation between D-G and battery system fullfill all the operation demand and meanwhilebalance on the battery life range extend;

(6)Remote monitor system: Make it able to remotemonitoring the system performance,to combinethe our engineers team with user as one teamfor 24/7 technical support (Optional)




System Specifications

Nominal Voltage

618VDC

Rated Energy

176kWh

Normal working SOC Range

20%-80%

Maximum Plus Charging Current

1200A

Maximum Continue Charging Current

855A

Maximum Plus Discharging Current

1200A

Maximum Continue Discharging Current

855A

Service Life

8-10 Years

Coolingtype

Liquid /Air cool

Working temperature range

-35°C—65°C
Auxiliary power supplyCapacity (380V,50/60Hz)60KVA-90KVA
Diesel Get Set Capacity125-200kva
Emission ApplyUp to Tier 4F/Euro V
